| Parameter | Value |
|---|---|
| Rated primary current | 1-80A |
| Current range | 1%-120% |
| Window hole size | 10mm |
| Accuracy | 0.5% |
| Phase error | <1.5 degree at Rated |

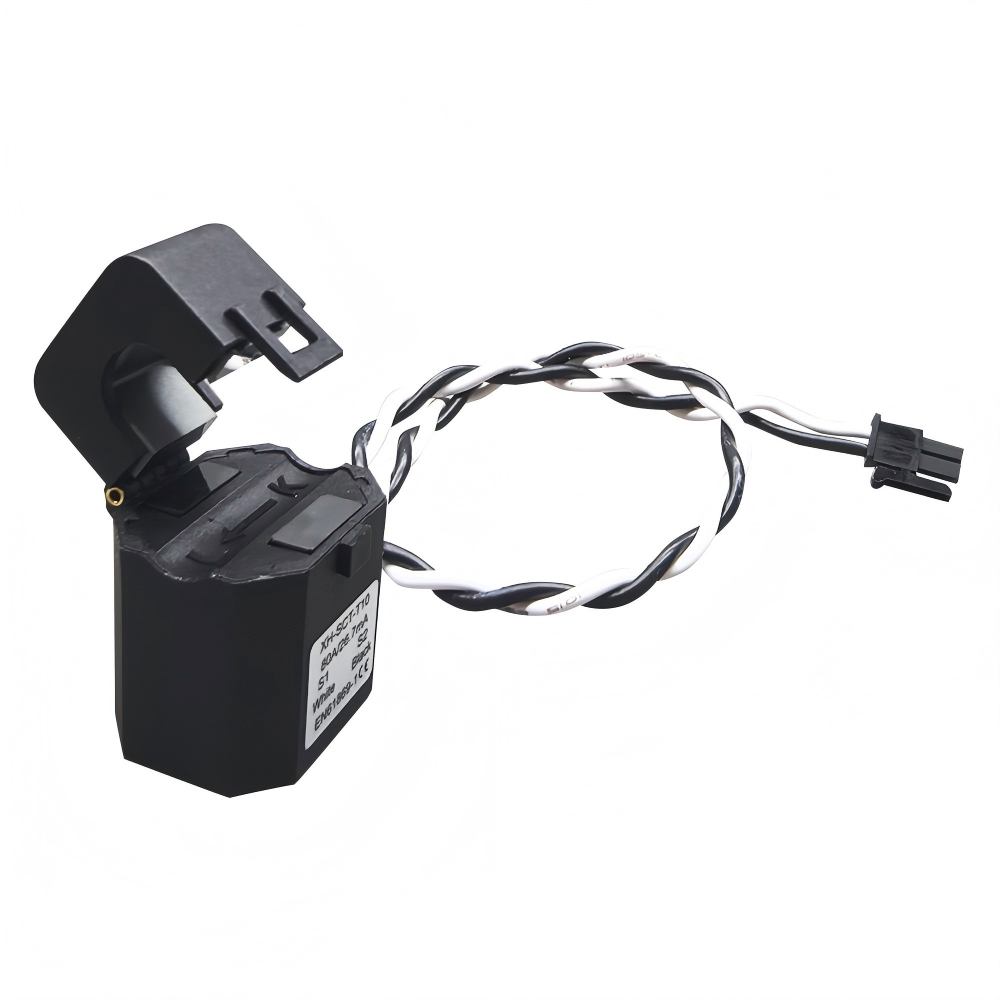

| Lead Wires | 1m twist pair Black&White UL1015 24awg or customized |
| Certificates | CE, UKCA ,RoHS, UL(E341727) |
| Weight | 70g for 1m cable leads |
MOQ is 5 pcs
Yes. up to 3 pcs free samples can be provided for testing with freight collected .For example XH-SCT-T10-50A/0.333V with 1m twist Black&White can be shipped within 3 days
Usually 3-5 days for 100-1000 pcs for standard cable leads .Customized cable or connectors typically require 15–20 days
Tell us your requirements and we'll respond within 24 hours with a competitive quote.
