Rogowski coil

Rogowski coil

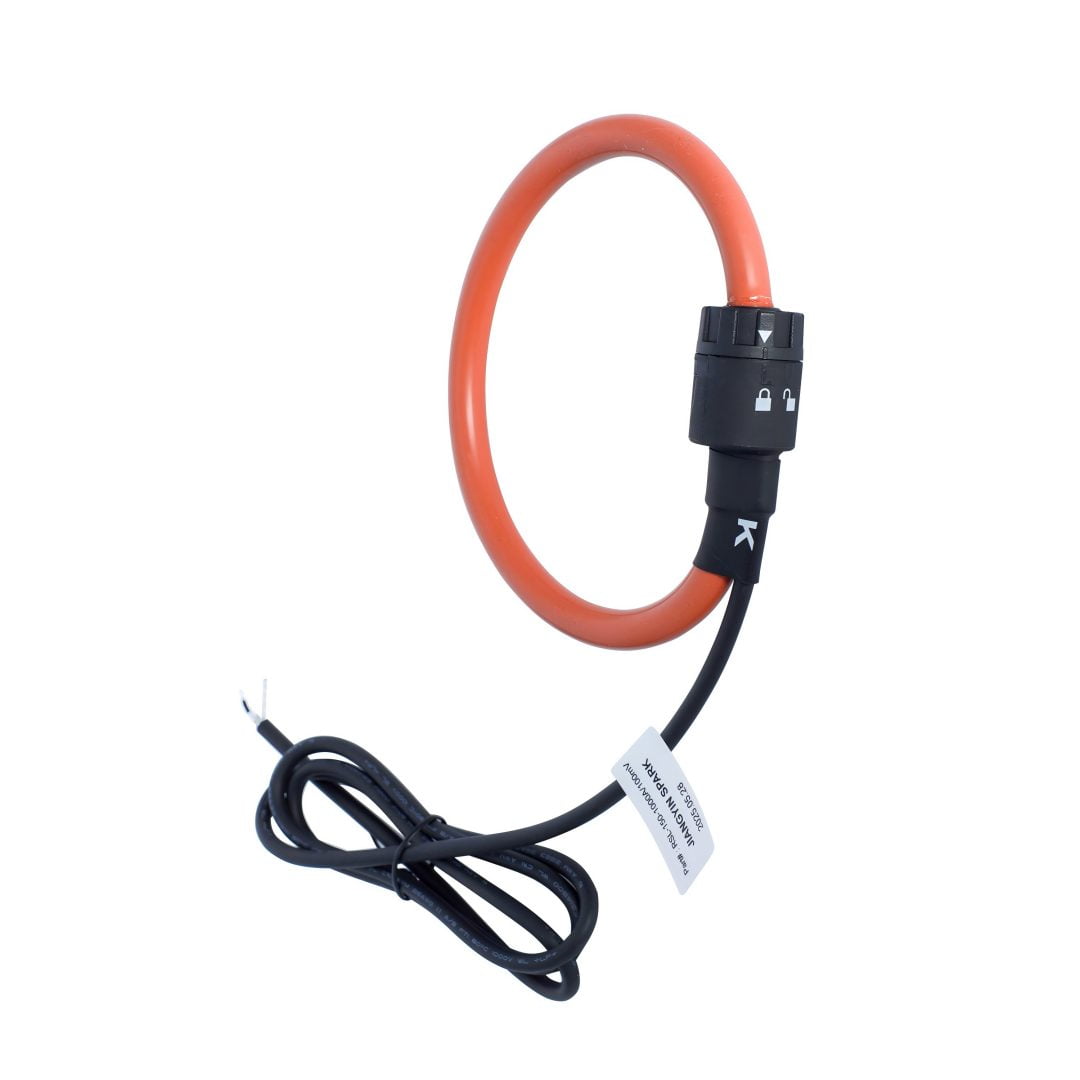

Rogowski coil is a flexible, air-cored current sensor . it is thin, light-weight and clip-around ,easy to install and retrofit, it is designed to use where solid or split core current transformers cannot fit

Unlike traditional current transformers, Rogowski coils do not use an iron core, which eliminates magnetic saturation and allows highly linear and wide-range current measurement.

Certifications
CE RoHS UL
Request a Quote
Rogowski coil

Key Features

  • Air-core design,no saturation at high currents, excellent linearity
  • Flexible coil,split design allows quick installation without disconnecting cables.
  • Lightweight and compact,Easy to handle and install
  • Wide frequency response
  • Wide measurement range,from low to very high currents
  • Safe measurement,non-contact current sensing.
  • Popular rating :1000A/100mV ,1000A/85mV
  • UL ,CE ,ROHS

Applications

  • Power & Energy Systems
  • Power Quality Analysis
  • Real-time power monitoring
  • Protection & Monitoring

Technical Specifications

Electrical

Rated current (rms)
10A to 200KAac
Output Form
100mV, 80mV, 333mV, 5V, 1A ,5A ,RS485
Accuracy
1.0 %
Frequency bandwidth
10Hz - 2MHz

Mechanical Environmental

Operating Temperature
-25°C to 75°C
Operating Humidity
Non-Condensing, 0 to 95% RH
IP rating
IP68

Safety / Material

Insulation Voltage
CAT IV , 1000V
Certifications
CE, RoHS, UL

Model Variants

Select from our standard models or contact us for custom configurations.

RS-100
Inner Diameter
100
Input
100-10000A
Output
100mV
Accuracy
1.0%
Weight
100g
Inquire
RSL-150
Inner Diameter
150
Input
100-10000
Output
0.333V
Accuracy
1.0%
Weight
100g
Inquire
