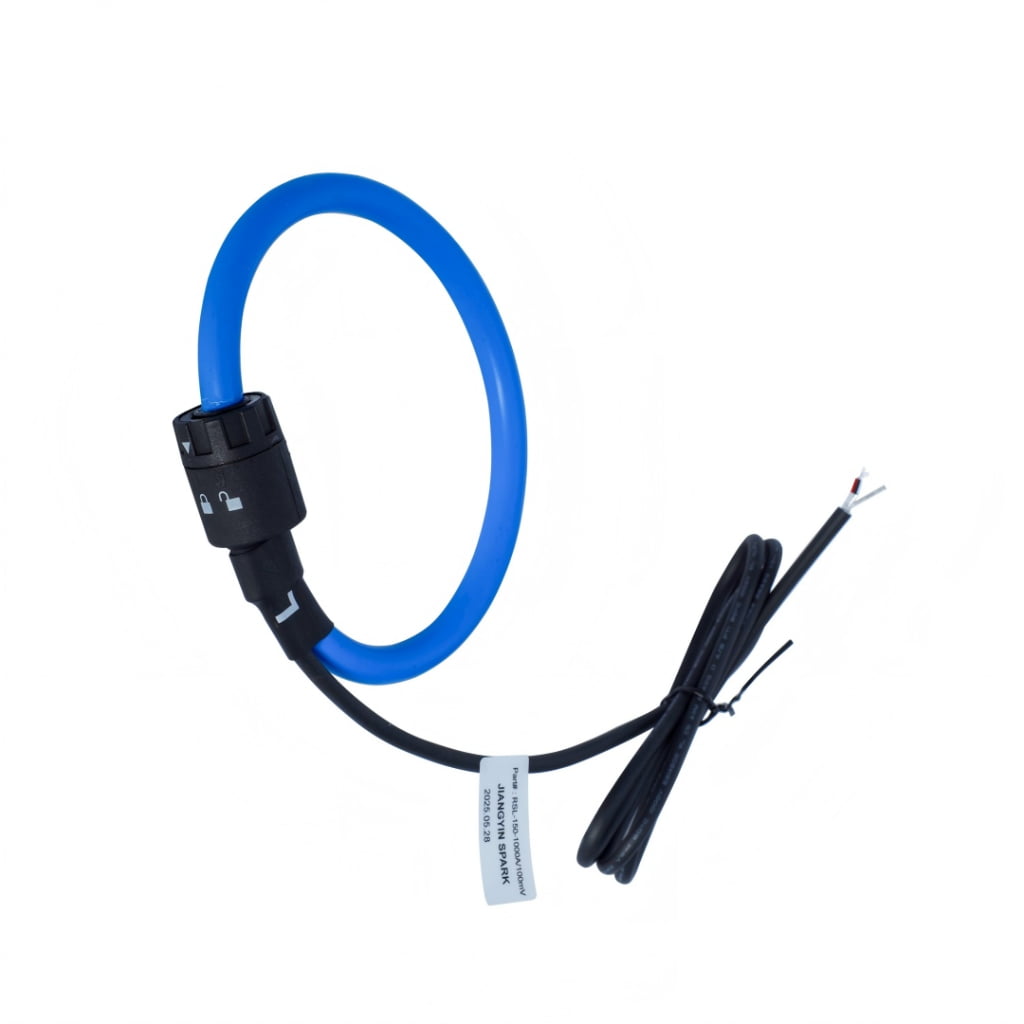

Rogowski Coil 1000A/100mV
Model No: RS-100-1000A/100mV
UL2808
CE
UKCA
RoHS
ISO 9001
Input
10A-200KA
Output
100mV ,85mV or others
Inner Diameter
100mm ,150mm ,200mm or custom design
Dimensions
diameter 10.5mm
Weight
200g
Key Features
- Air-core design,no saturation at high currents, excellent linearity
- Flexible coil,split design allows quick installation without disconnecting cables.
- Lightweight and compact,Easy to handle and install
- Wide frequency response
- Wide measurement range,from low to very high currents
- Safe measurement,non-contact current sensing.
- Popular rating :1000A/100mV ,1000A/85mV
- UL ,CE ,ROHS
Fast Delivery: 7-10 days / 10K pcs
OEM / ODM Friendly
Free Samples Available
Technical Specifications
Electrical
| Rated Primary Current | 10A-200KA |
| Output | 100mV ,85mV or others |
| Accuracy Class | 0.5% / 1.0% |
| Current Range | 10% - 120% of Rated |
| Frequency | 50 / 60 Hz |
| Wire Polarity | White = + Black = − |
Mechanical / Environmental
| Form Factor | Split-Core CT (Hinged) |
| Exterior Dims | diameter 10.5mm |
| Inner Diameter | 100mm ,150mm ,200mm or custom design |
| Weight | 200g |
| Case Material | Epoxy, UL 94V-0 |
| Lead Wire | 2.4 m twisted pair (customizable) |
| Operating Temp | −20 °C to 55 °C |
| Humidity | 0 - 95% RH, non-condensing |
| Installation | Indoor use |
Safety / Compliance
| Rated Voltage | 600 VAC CAT III |
| Insulation | 600 VAC |
| Withstand Voltage | 3.0 kV / 1 mA / 1 min |
| Certifications | UL2808 (E498920), CE, UKCA, RoHS |
| Quality Mgmt | ISO 9001 · ISO 14001 · ISO 45001 |
| Phase Orientation | Arrow → Load |
Rogowski Coil Specifications
| Parameter | Value |
|---|---|
| Rated Primary current | 10A to 200KA ac |
| Current Range | 5% - 100% of Rated Current |
| Output Form | 100mV /1000A@50Hz |
| Frequency bandwidth | 10Hz - 2MHz |
| Load | ＞10KΩ（Voltage type） |
| Accuracy | 1.0 % |
| Linearly | 1.0 % |
| Operating Temperature | -25°C to 75°C |
| Operating Humidity | Non-Condensing, 0 to 95% RH |
| IP rating | IP68 |
About Rogowski Coils
Flexible Rogowski coils offer a wide current measurement range and easy installation around irregular conductors.
Ideal for energy monitoring, smart grid, and power quality applications.
Dimensional Drawing
| Parameter | Value |
|---|---|
| Exterior Width | diameter 10.5mm |
| Exterior Height | 53.3 mm (2.10") |
| Exterior Depth | 17.0 mm (0.67") |
| Inner Diameter | 100mm ,150mm ,200mm or custom design |
| Form Factor | Split-Core CT (Hinged) |
| Lead Wire Length | 2.4 m twisted pair (customizable) |
| Case Material | Epoxy Encapsulated, UL 94V-0 |
| Wire Polarity | White = Positive Black = Negative |
Installation Note
Arrow on housing must point towards load. Designed for indoor use only.
Operating temperature −20 °C to 55 °C, humidity up to 95% RH non-condensing.
Weight: 200g
Typical Applications
Power & Energy Systems
Power Quality Analysis
Real-time power monitoring
Protection & Monitoring
How to Order
01
Submit Specs
Provide input current, output, wire length & window size
02
Get Quote
We recommend a model and send a quotation by quantity
03
Free Sample
Standard samples ship within 3 days via your DHL/UPS account
04
Test & Approve
Evaluate the sample against your application requirements
05
Place Order
Confirm order; standard lead time 10-15 days from receipt
06
Ship & Deliver
7-10 days production for 10K pcs, near Shanghai port
