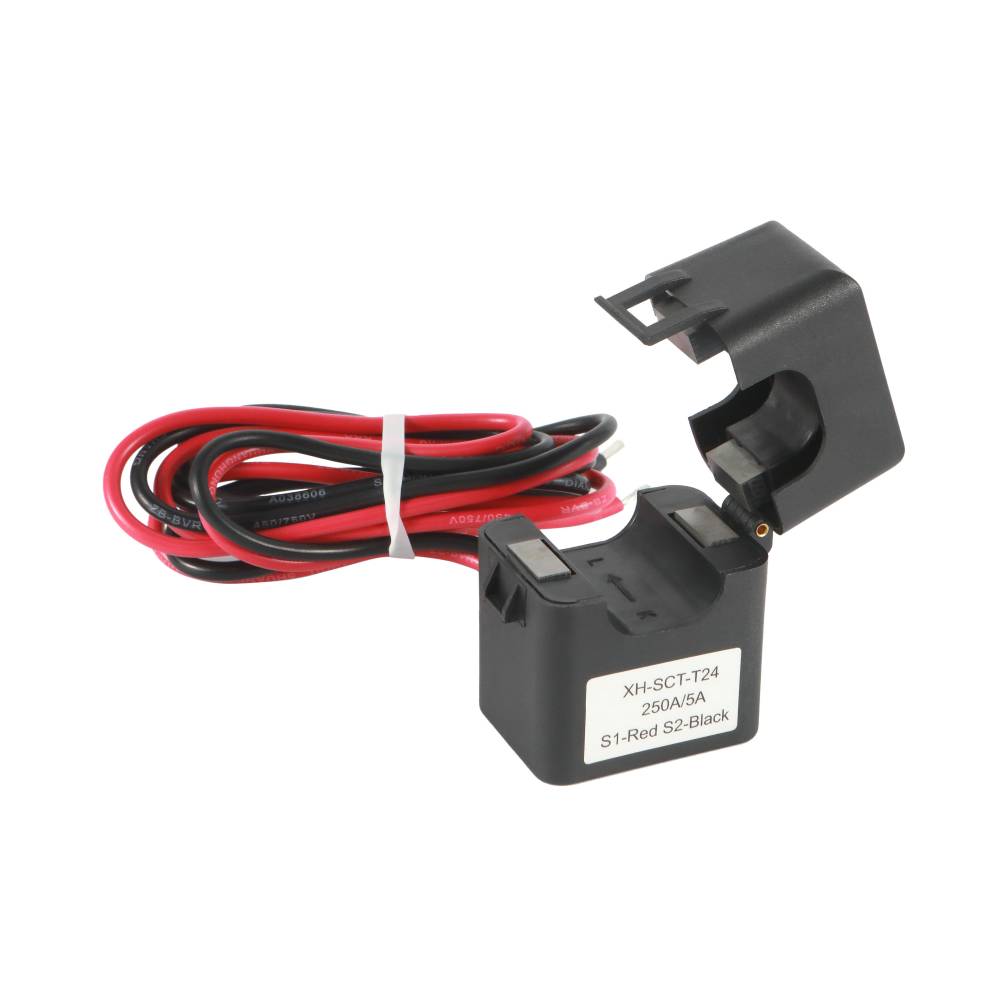

The XH-SCT-T24 is a UL recognized 24mm split core current transformer (clamp-on CT) measuring 1–300A AC with a mV ,mA ,1A or 5A output and Class 0.5 accuracy maintained from 5% to 120% of rated current. Its secure locking hinge opens with one hand and clamps around existing conductors without disconnecting the primary wire or interrupting power — making it the standard choice for energy submetering, PV monitoring and electrical panel retrofits where the conductor cannot be taken offline.

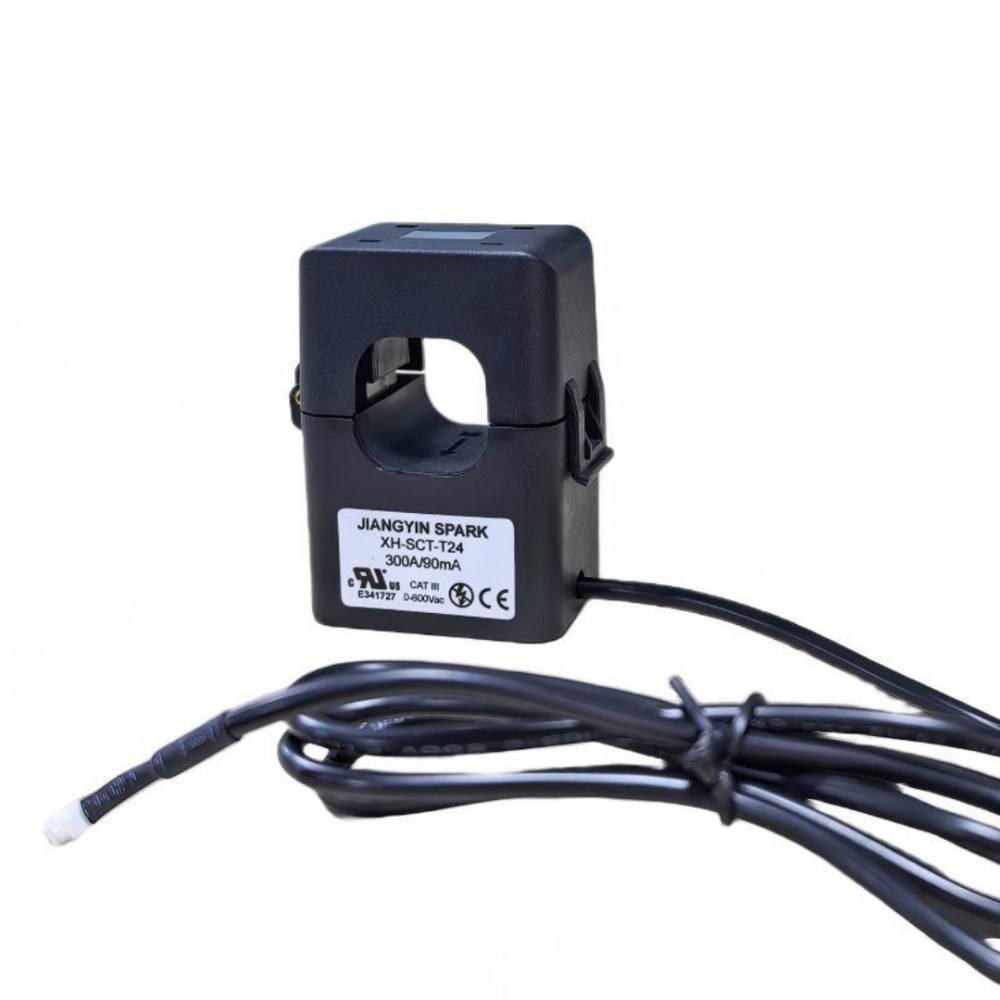

The XH-SCT-T24 is a UL split core current transformer manufactured by Jiangyin Spark Electronic Technology Co., Ltd., a factory established in 1995. Designed around a 24mm round window, it accommodates standard insulated conductors and cable bundles used in distribution boards up to 300A,
The split core design permits non-contact current measurement through magnetic field induction without taking the primary conductor offline or disconnecting it. That single characteristic defines where the T24 is used: tenant submetering in occupied buildings, per-circuit monitoring added to existing distribution panels, and PV or EV circuits where interrupting service carries a real cost. The secure locking hinge opens and closes with one hand, shortens installation time, and — critically for accuracy — allows the core faces to close cleanly, since a partially closed core introduces an air gap that degrades the ratio error.
The T24 uses a built-in resistor to produce a 0.333V (333mV) voltage output, connecting directly to electronic energy meters, power monitors and building controllers without burden-matching calculations. Because the secondary is a low-voltage signal rather than a 5A current output, it is safe to work with and cannot produce the lethal open-circuit voltage associated with current-output CTs. mA output variants are available for panel meters. Standard lead wire is 1.05m of UL 1015 24AWG twisted pair; custom lengths, gauges, connectors and current ratios are produced under our OEM/ODM program.
| Parameter | Value |
|---|---|
| Model | XH-SCT-T24 |

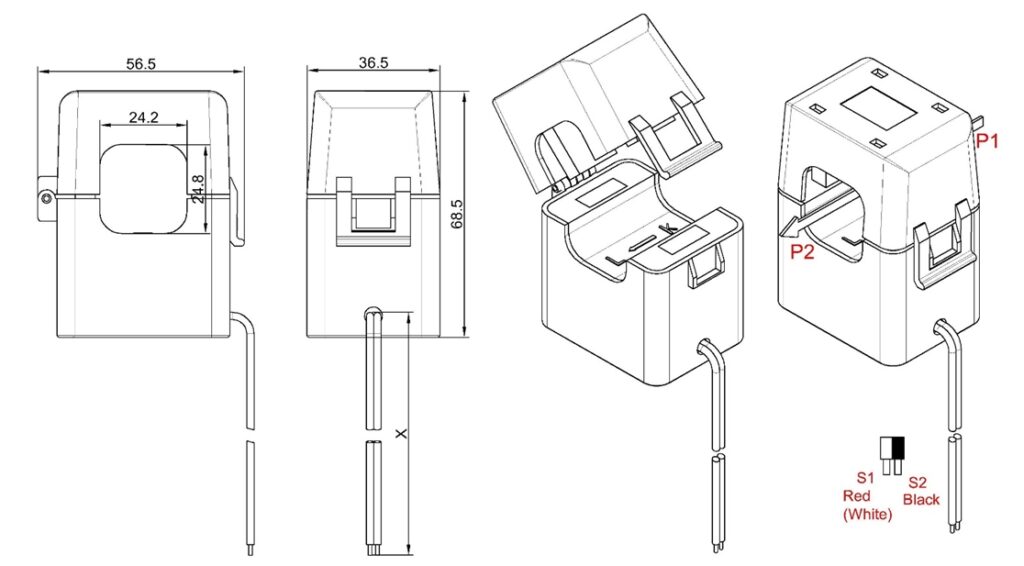

| Diameter | 24mm |
| Rated Primary current | 5A to 300A |
| Rated output | mA, mV, 1A, 5A |
| Measuring range | 5% – 120% of rated current |
| Popular Current ratio (turns) | 3000:1 |
Yes ,mA,mV output can be 0.5 class , for example XH-SCT-T24-200A/66.6mA
5-7 days for standard wire leads without connector . 15-20 days for customized wire leads with connectors
