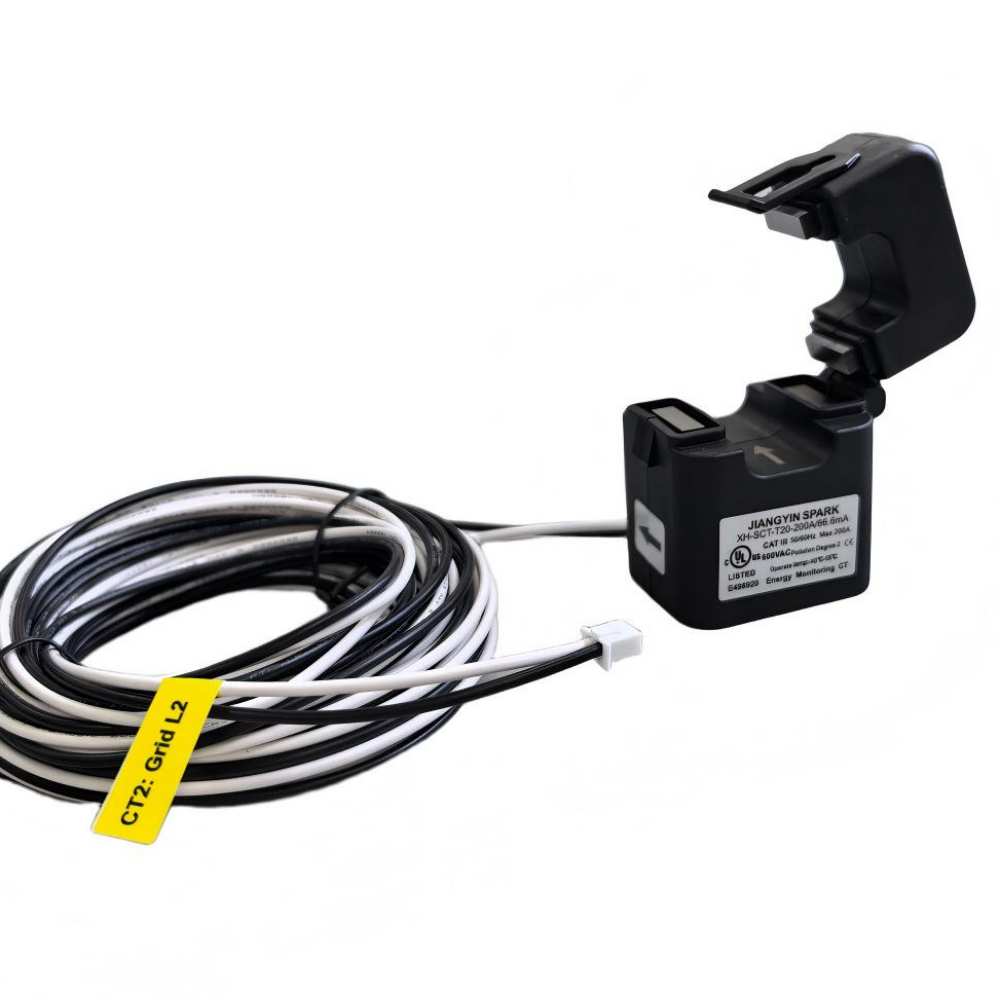

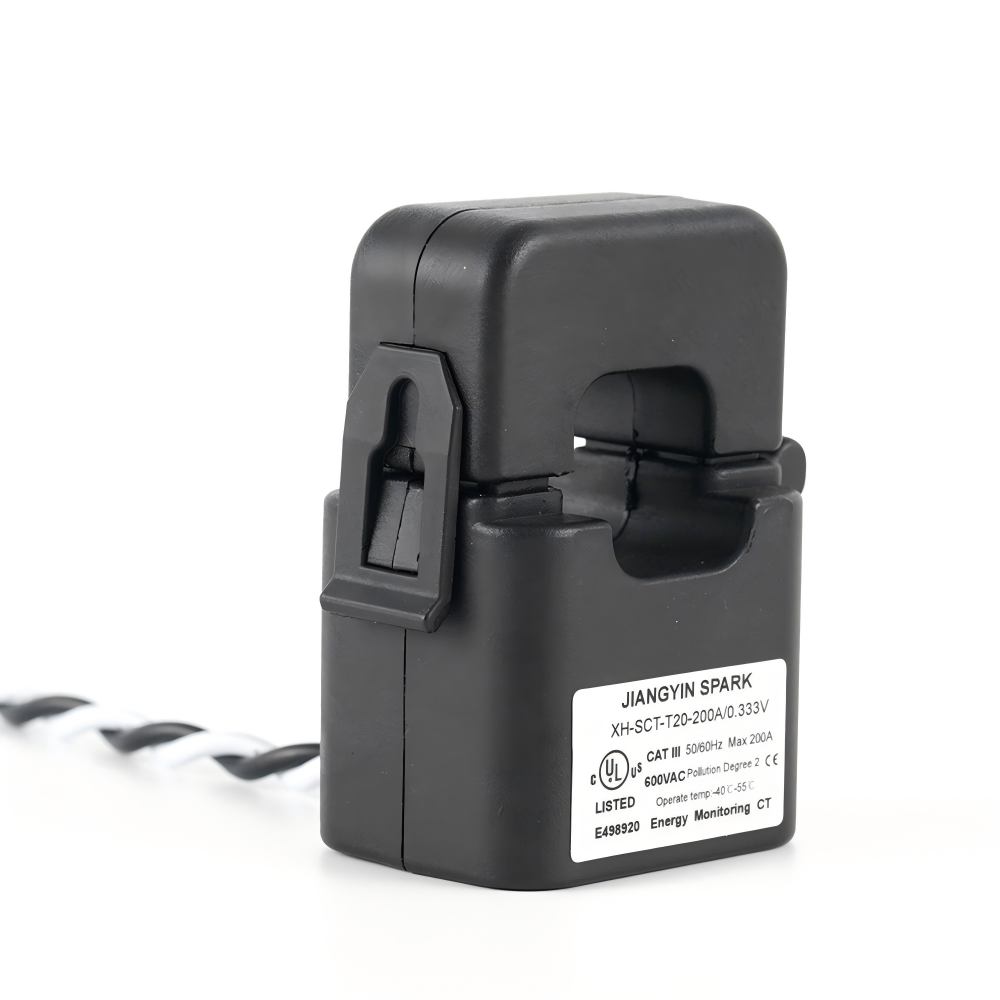

The XH-SCT-T20 is a UL 2808 XOBA listed split core current transformer (open type CT) with a 20mm window opening, measuring 1–300A AC with a 333mV, mV or mA output at Class 0.5 revenue-grade accuracy. Its one-handed opening mechanism clamps around existing conductors without disconnecting the circuit or shutting down the panel — the standard choice for tenant billing submetering, energy monitoring and retrofit projects in occupied buildings.
The XH-SCT-T20 is a UL 2808 XOBA listed split core current transformer manufactured by Jiangyin Spark Electronic Technology Co., Ltd., a current sensing factory established in 1995. The split core design permits non-contact current measurement through magnetic field induction without taking the primary wire offline or disconnecting it for CT installation — critical in tenant submetering, where shutting down occupied tenant circuits is not an option.
The T20 uses a built-in resistor to provide a 333mV voltage output at rated current. Compared with traditional 5A current-output CTs, this design makes the secondary safe to open-circuit, removes the burden-matching calculation, and connects directly to modern electronic revenue meters and data loggers. With Class 0.5 ratio and phase accuracy, it supports the accuracy class required for tenant billing and cost allocation — provided it is matched with a meter of equal or better class (see the revenue-grade section below).
The T20 belongs to the UL 2808 XH-SCT series, which includes the T06 (6mm), T12 (13mm), T18 (18mm) and T20 (20mm) window sizes. custom ratios, output signals, lead lengths and connectors are available
| Parameter | Value |
|---|---|
| Model | XH-SCT-T20 |

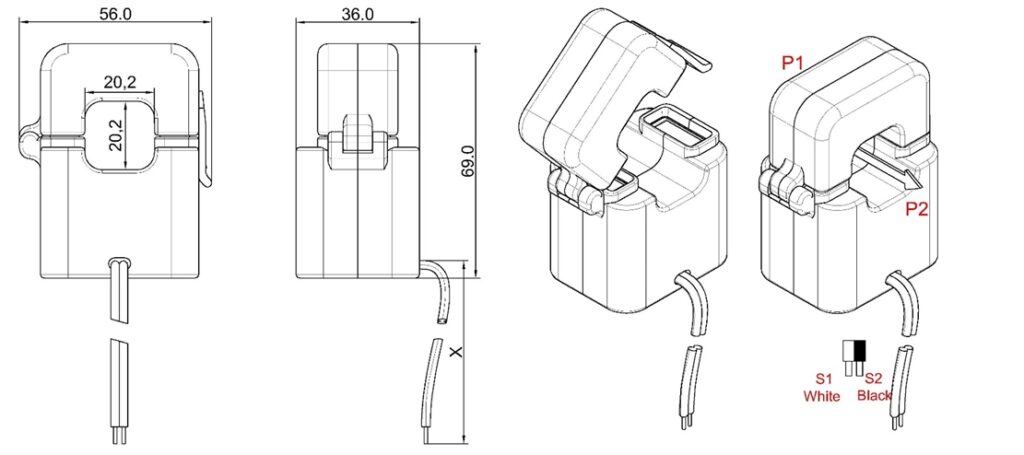

| Window opening | 20mm |
| Current range (input) | 1 A – 300 A AC |
| Output | 0.333 V (333 mV) or mA / V at rated current |
| Accuracy | Class 0.5 (±0.5%) |
| Phase error | <30' at Rated |
| Insulation / withstand voltage | 5.4 kV / 1 mA / 1 min |
| Insulation Voltage | CAT IV 250 or CAT III 600 |
| Operating temperature | −20 °C to +75 °C |
| Weight | 200g for 1m cable |
Tell us your requirements and we'll respond within 24 hours with a competitive quote.
