| Parameter | Value |
|---|---|

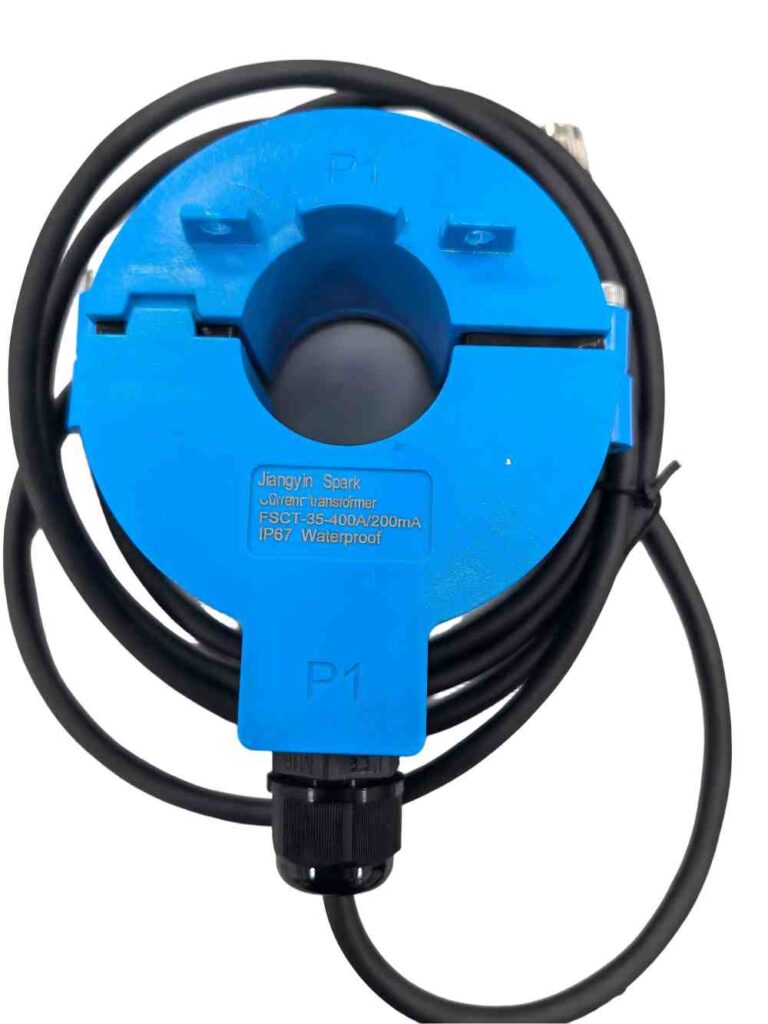

| Model | FSCT-35 |
| Window opening | 35mm |
| Rated Input Current | 100-600A |
| Rated output | mA , mV ,1A ,5A or customized |
| Burden | 1.5VA –5VA |
| Accuracy class | 0.5 class, 1.0 class |
| Wire lead | 2*2.5mm2 sheathed wire or customized |
| Insulation strength | 3.5KVac/min |
| Working temperature | -25℃~70℃ |
| Weight | 2kg for 1m wire leads |

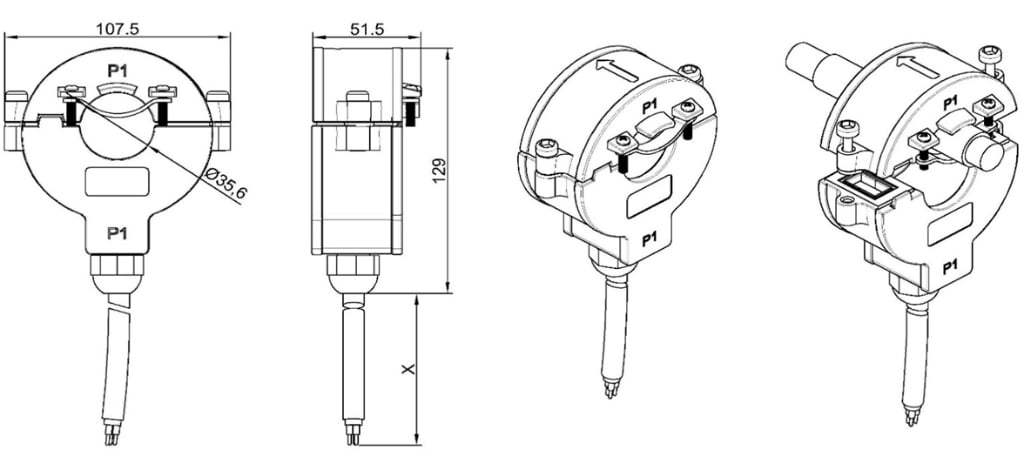

| Dimension | 107.5 x 129 x 51.5mm |
