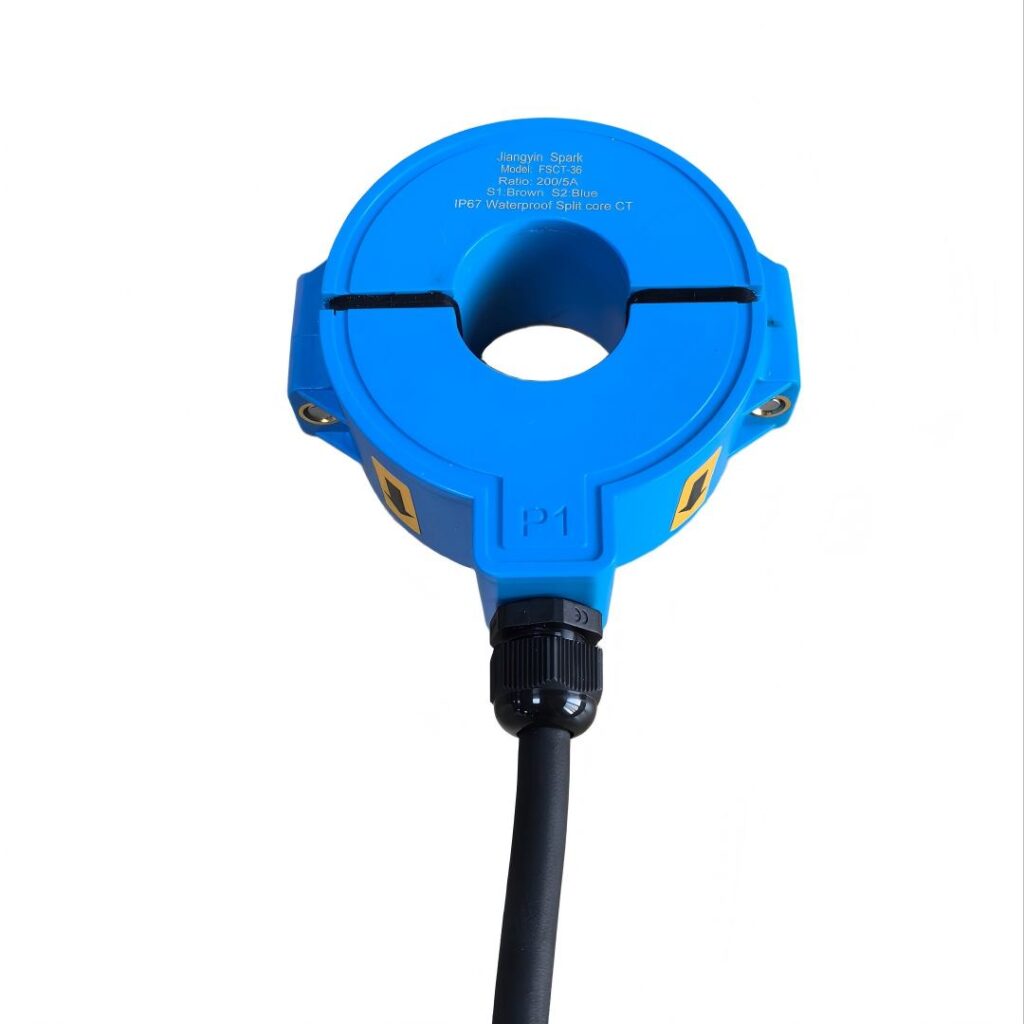

Waterproof Split core Current Transformer FSCT-36
Waterproof Split core Current Transformer FSCT-36
Waterproof Split core Current Transformer FSCT-36
Waterproof Split core Current Transformer FSCT-36
Waterproof Split core Current Transformer FSCT-36
Waterproof Split core Current Transformer FSCT-36

Waterproof Split core Current Transformer FSCT-36

Model: FSCT-36

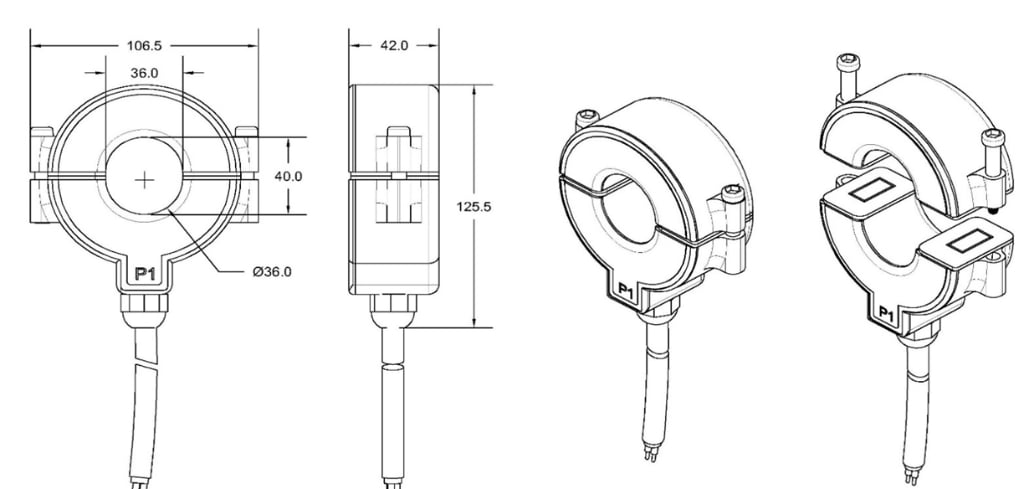

Window Size / Diameter: 36mm
Popular Ratio: 100/5A, 300/5A
Request a Quote Request Sample
Fast Delivery: 7-10 days for 10K pcs  |  Standard lead time: 10-15 days

Product Features

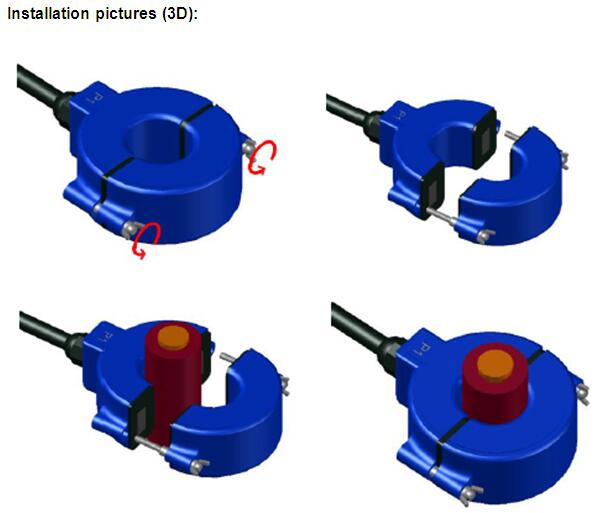

Split core design for fast and easy installation
For outdoor use, level of protection: IP67

Applications

Smart grid
Energy monitoring

Technical Specifications

Parameter Value
Rated Primary Current 50-800A
Rated secondary output 1A ,5A,mA ,mV
  IP class IP67
  Accuracy Class 0.5% ,1.0%,3.0%
Insulation strength 3KV/1mA/1Min;
Weight 800g
