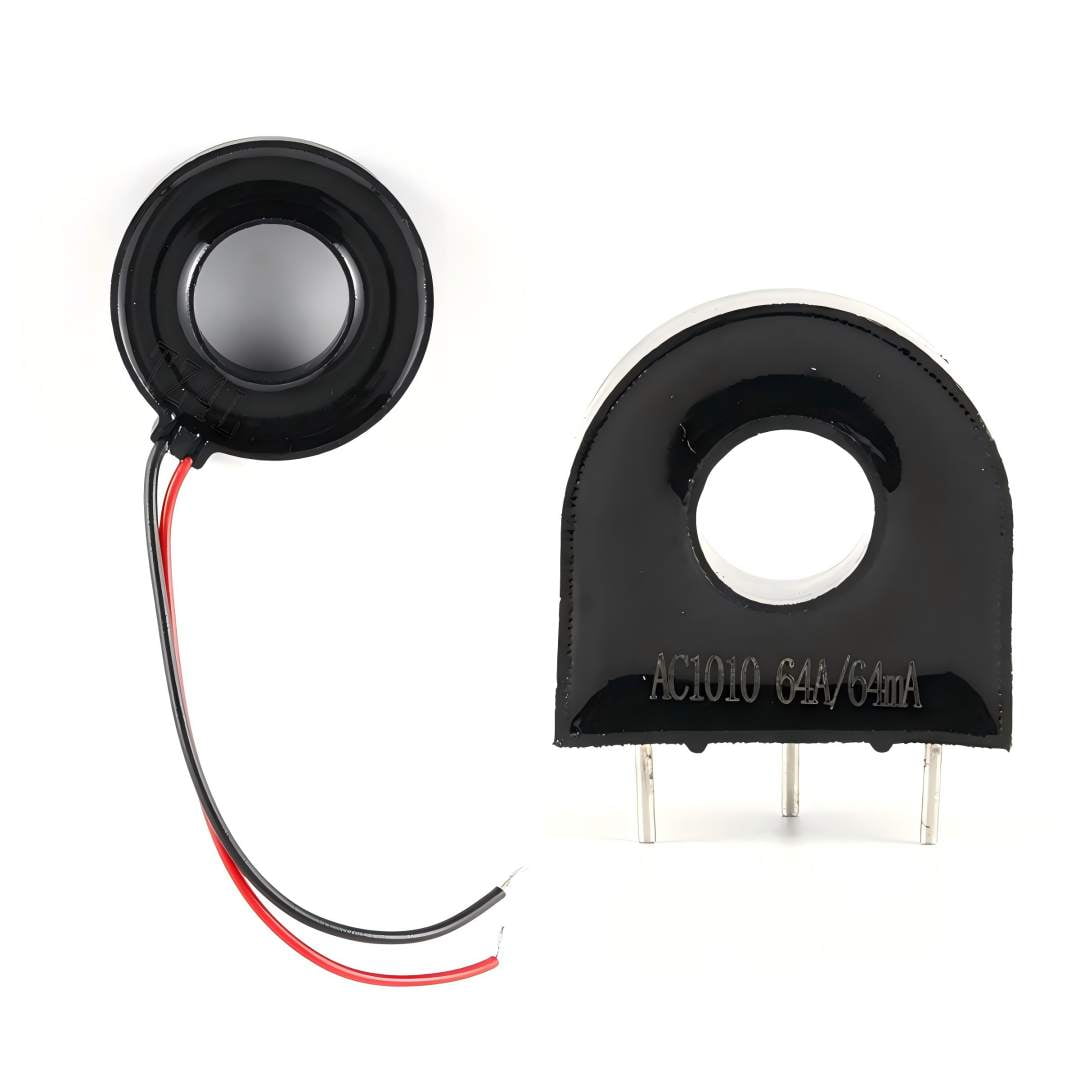

PCB ,SMD current transformer

Key Features

  • Low cost. low profile for PCB mounting
  • High accuracy，wide linear range，low phase shift error
  • Burn-resistant case and filler

Applications

electronic energy meter, power transducer, precision power meter and other power and energy monitoring devices
over current protection circuit of motor and other electrical appliances
Technical Data

Specifications

Electrical

Rated current 1-200A
Accuracy 0.1%
output mA
Dielectric strength Dielectric Resistance 1000M Ohms @ 500 Vdc
Dielectric strength 2500V/min
Working frequency 50-400Hz
Certificate CE-approved
Ordering Guide

Model Variants

Select the appropriate model based on your window size and input / output requirements.

Model Window Size Input Output Accuracy Weight MODEL SPECS
WCT-CA 5 10-50 20mA 0.1% 10g
