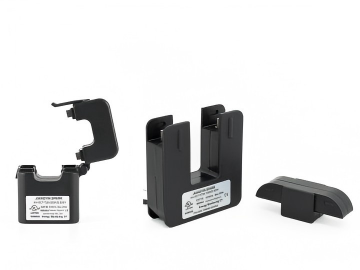

Split core CT

Revenue grade Split Core CT

Rated Primary Current
5-5000A
Rated Output
333mV, mA,1A,5A

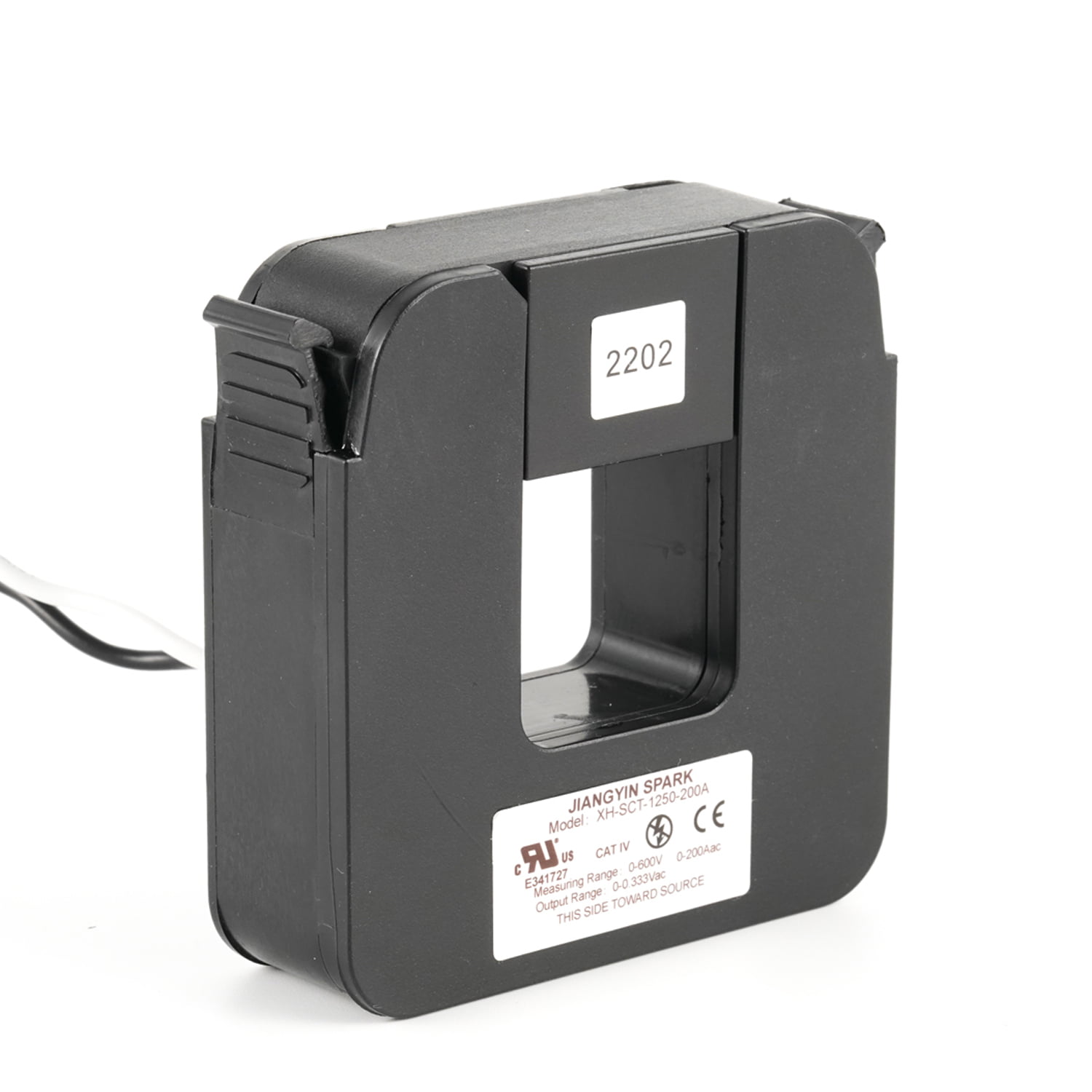

The JIANGYIN SPARK series of Revenue Grade split core current transformers are designed for higher accuracy and easy fast installation, Class can be 0.2% ,UL 2808 list for guaranteed safety and quality

Request a Quote

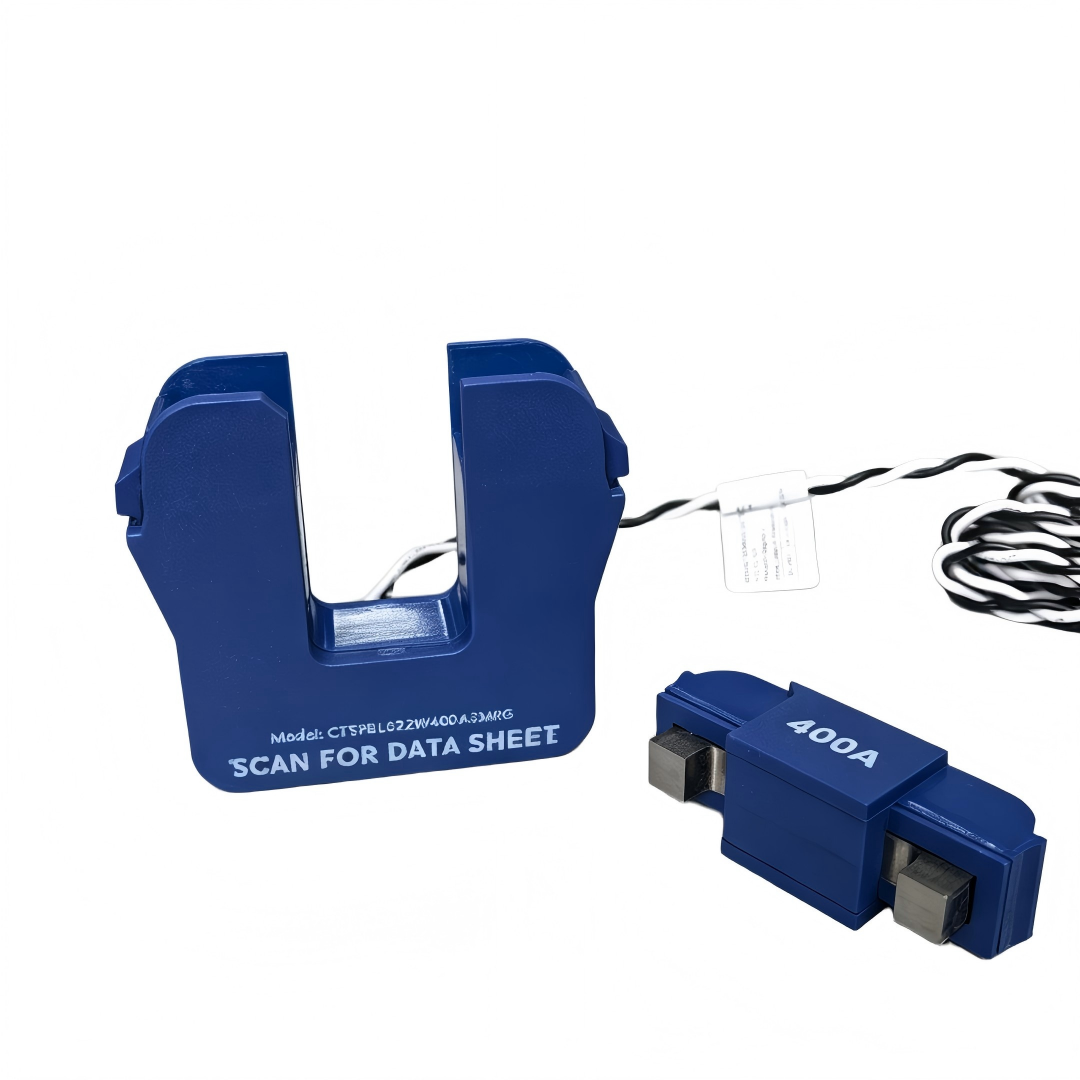

Revenue grade Split Core CT

Key Features

  • Revenue grade High accuracy
  • Press-open split-core design for fast and simple installation.
  • Built-in burden resistor or protection diode

Applications

  • Energy Management Systems
  • Utility Revenue Metering
  • Smart Grid Infrastructure
  • Industrial Energy Monitoring
  • Renewable Energy Systems

Technical Specifications

Mechanical Environmental

Open type
Press Open Split-Core CT
Operating Temperature
-25°C to 75°C
Operating Humidity
Non-Condensing, 5% to 95% RH
Installation Conditions
Indoor Use

Electrical

Current Range
5% - 120% of Rated Current
Wire Polarity
White=Positive, Black=Negative
Frequency Range
50 Hz – 400 Hz

Safety / Material

Withstand Voltage
5.4 kV / 1 mA / 1 min
Rated Voltage
600VAC, Rated CAT IV, PD3
Certifications
UL2808 ,CE ,RoHS

Model Variants

Select from our standard models or contact us for custom configurations.

XH-SCT-0750S
Inner Diameter
0.75 inch
Input
1-300A
Output
0.333V ,1A
Accuracy
0.5
Weight
200g
Inquire
XH-SCT-1250S
Inner Diameter
1.25 inch
Input
5-800A
Output
0.333V,mA,1A ,5A
Accuracy
0.5S
Weight
400g
Inquire
XH-SCT-2000S
Inner Diameter
2.0 inch
Input
100-1500A
Output
0.333V,mA,1A ,5A
Accuracy
0.5S, 0.2
Weight
800g
Inquire
XH-SCT-3000S
Inner Diameter
3.0 * 5.0 inch
Input
100-5000A
Output
0.333V,mA,1A ,5A
Accuracy
0.5S ,0.2
Weight
1500g
Inquire
