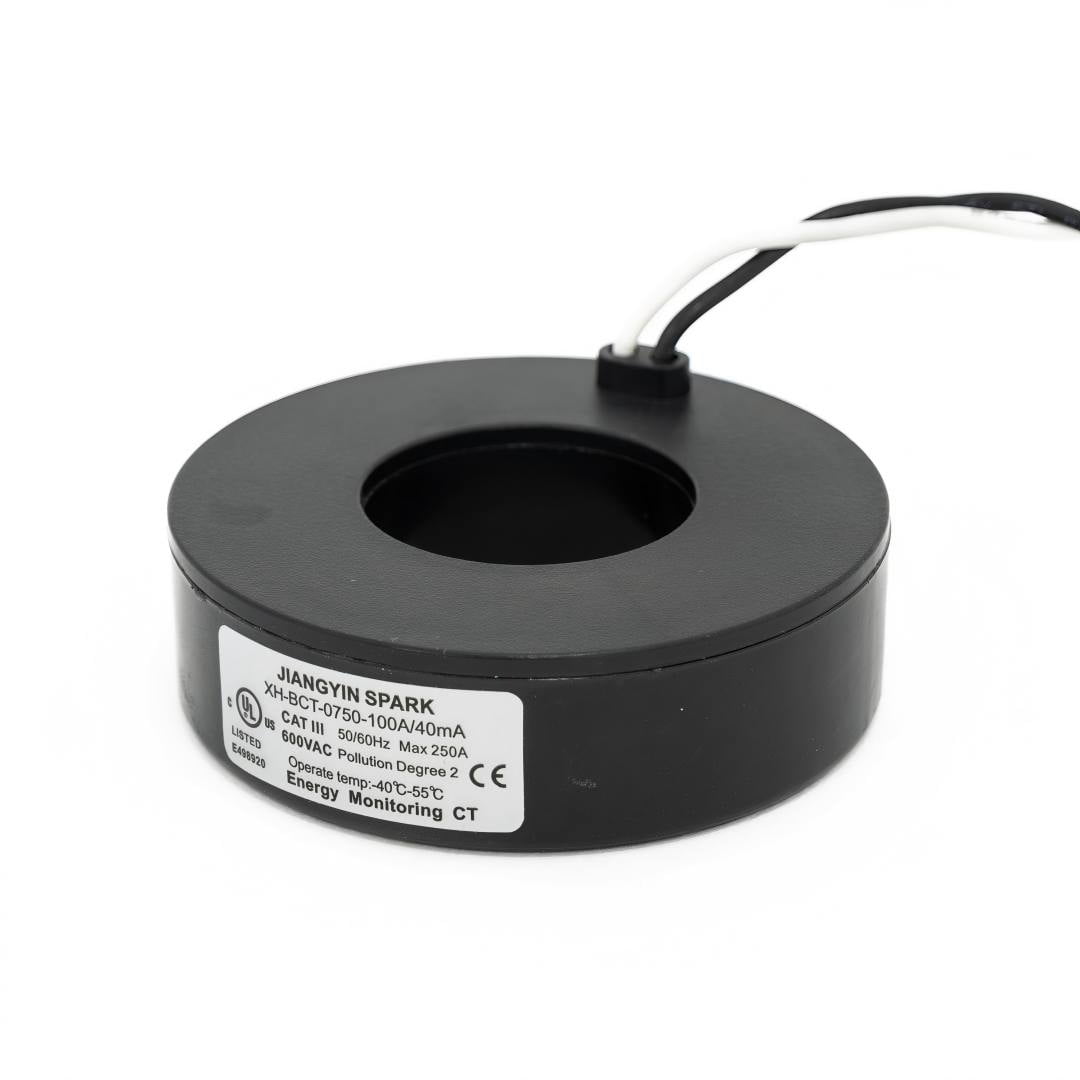

Solid core CT

Solid core CT

Rated Primary Current
5-600Aac
Rated Output
333mV ,50mA ,or customized

Jiangyin Spark XH-BCT Series of Solid Core Current Transformer design for better accuracy for 0.333V output .5

standard models for your choice. Measure current from 5Amp to 600 Amp.Solid core CTs are more accurately ,

small in size, and very cheap .If mA sendary output ,accuracy can be 0.1%

Certifications
CE RoHS UL2808
Request a Quote
Solid core CT

Key Features

  • Solid core type ,high accuracy
  • UL2808 list

Applications

  • production meter
  • energy monitoring
  • power management

Technical Specifications

Electrical

Accuracy
±0.2%
Current Range
1% to 120% of rated current
Rated Frequency
50Hz/60Hz
Tensile force value
9.08 kg(89N) for 1 minutes
Case Material
Nylon ,UL 94V-0

Safety / Material

Withstand Voltage
5400V
Insulation Voltage
CATIII 600V or CATIV 250V

Mechanical Environmental

Operating Temperature
-40℃ to +85℃
Wire Polarity
White=Positive, Black=Negative
Phase Orientation
Arrow Points Towards Load
Operating Humidity
Non-Condensing, 0 to 95% RH

Model Variants

Select from our standard models or contact us for custom configurations.

XH-BCT-0300
Inner Diameter
0.39 in. 0.76 cm
Input
1-50A
Output
mA or 0-5V output
Accuracy
0.2% ,±0.5%
Weight
50g
Inquire
XH-BCT-0500
Inner Diameter
0.50 in. 1.27 cm
Input
10-150A
Output
mA or 0-5V outpu
Accuracy
0.2% ,±0.5%
Weight
100g
Inquire
XH-BCT-0750
Inner Diameter
0.75 in. 1.91 cm
Input
10-250A
Output
mA or 0-5V outpu
Accuracy
0.2% ,±0.5%
Weight
150g
Inquire
XH-BCT-1000
Inner Diameter
1.00 in. 2.54 cm
Input
50-400A
Output
mA or 0-5V outpu
Accuracy
0.2% ,±0.5%
Weight
200g
Inquire
XH-BCT-1250
Inner Diameter
1.25 in. 3.18 cm
Input
100-600A
Output
mA or 0-5V outpu
Accuracy
0.2% ,±0.5%
Weight
280g
Inquire
