Split core CT
Split core CT 333mV Square UL2808

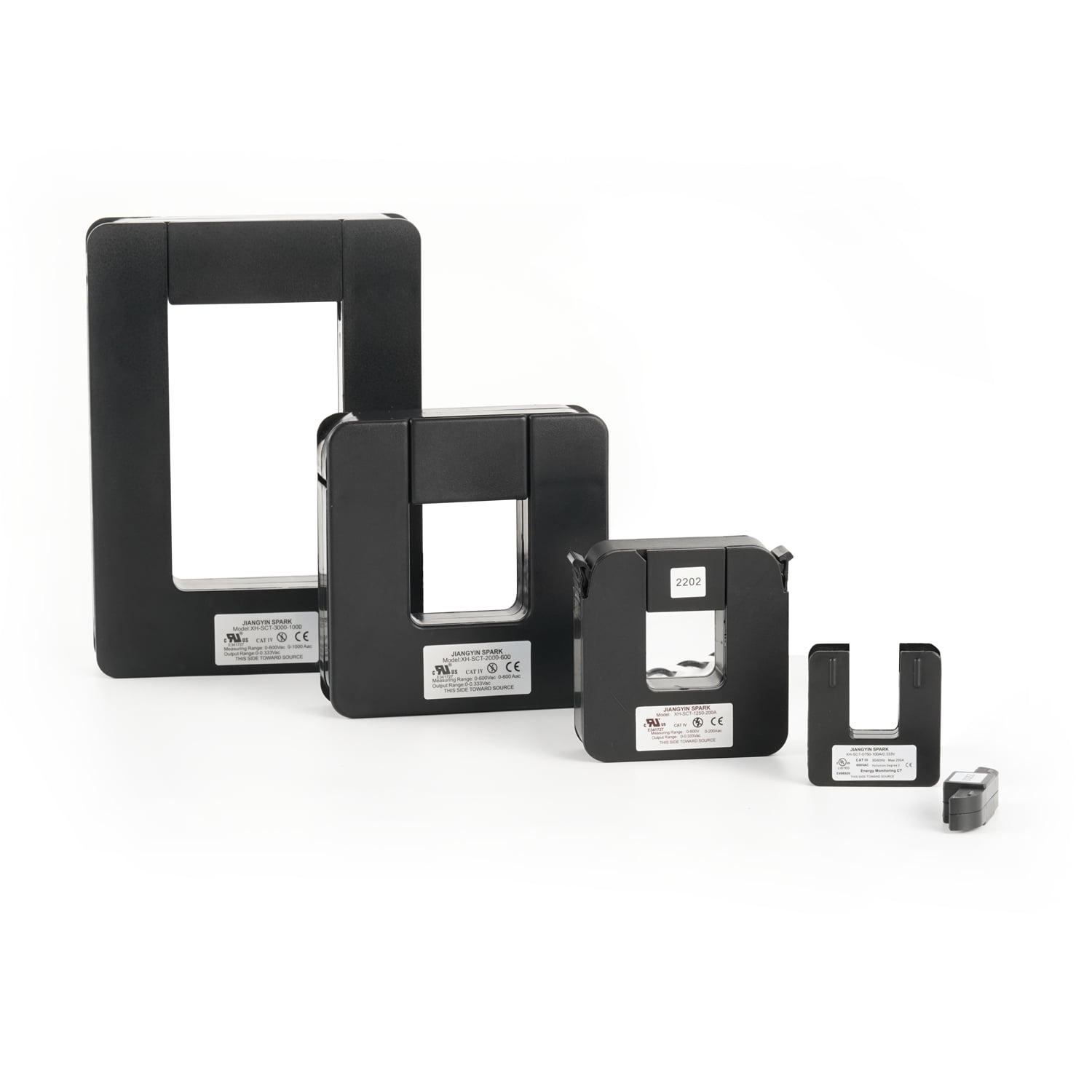

JIANGYIN SPARK 333mV UL2808 split core current transformers are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary
Certifications
CE
RoHS

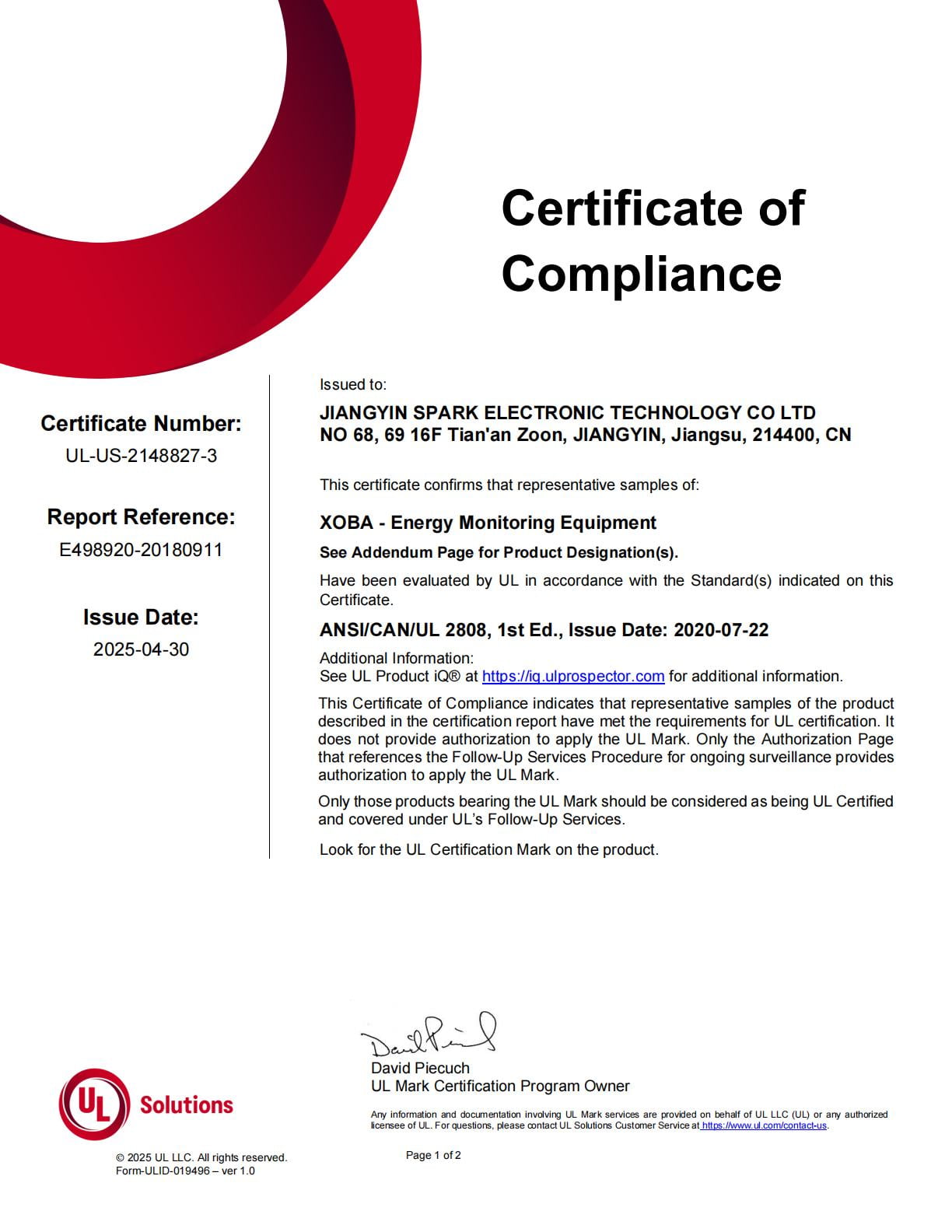

UL2808
Key Features
- Split-core design ,easier, quicker installation
- Popular rating :200A/333mV,400A/333mV, 600A/0.333V, 800A/0.333V, 1000A/0.333V
- Includes a built-in Resistor or protection Diode to limit high voltage
- Perfectly paired with Power Meter
- UL2808xoba list （E498920） ,CE ,ROHS
Applications
- Sub-Metering Accurate Measurement
- PV Inverters,PV monitoring
- Real-time power monitoring
- Residential Systems
- IOT Energy management
Technical Specifications
Electrical
Rated Primary current
5A to 3000Aac
Current Range
10% - 120% of Rated Current
Output: 333mV or mA ,0-3V at rated current
333mV or mA ,0-3V at rated current
Accuracy
1%
Lead Wires
2.4m twist pair or customized
Wire Polarity
White=Positive, Black=Negative
Phase Orientation
Arrow Points Towards Load
Frequency Range
50/60Hz
Safety / Material
Insulation Voltage
5.4KV/1mA / 1min,600VAC,CAT III
Certifications
UL(E498920),CE, RoHS,
Mechanical Environmental
Case Material
Epoxy Encapsulated Housing, UL 94V-0
Operating Temperature
-20°C to 75°C
Operating Humidity
Non-Condensing, 0 to 95% RH
Installation Conditions
Indoor Use
Model Variants
Select from our standard models or contact us for custom configurations.
| Model Number | Inner Diameter | Input | Output | Accuracy | Weight | |
|---|---|---|---|---|---|---|
| XH-SCT-0750 | 0.75" (19. 1mm) | 1-200A | 333mV | 1.0 | 200g for 2m cable | Inquire |
| XH-SCT-1250 | 1.25" (31.8mm) | 100-600A | 333mV | 1.0 | 400g for 2m cable | Inquire |
| XH-SCT-2000 | 2.00" (50.8mm) | 400-1200A | 333mv | 1.0 | 800g for 2m cable | Inquire |
| XH-SCT-3000 | 3.00" x 5.00" (76.2mm x127mm) | 500-5000A | 333mV | 1.0 | 1200g for 2m cable | Inquire |
XH-SCT-0750
Inner Diameter
0.75" (19. 1mm)
Input
1-200A
Output
333mV
Accuracy
1.0
Weight
200g for 2m cable
XH-SCT-1250
Inner Diameter
1.25" (31.8mm)
Input
100-600A
Output
333mV
Accuracy
1.0
Weight
400g for 2m cable
XH-SCT-2000
Inner Diameter
2.00" (50.8mm)
Input
400-1200A
Output
333mv
Accuracy
1.0
Weight
800g for 2m cable
XH-SCT-3000
Inner Diameter
3.00" x 5.00" (76.2mm x127mm)
Input
500-5000A
Output
333mV
Accuracy
1.0
Weight
1200g for 2m cable
