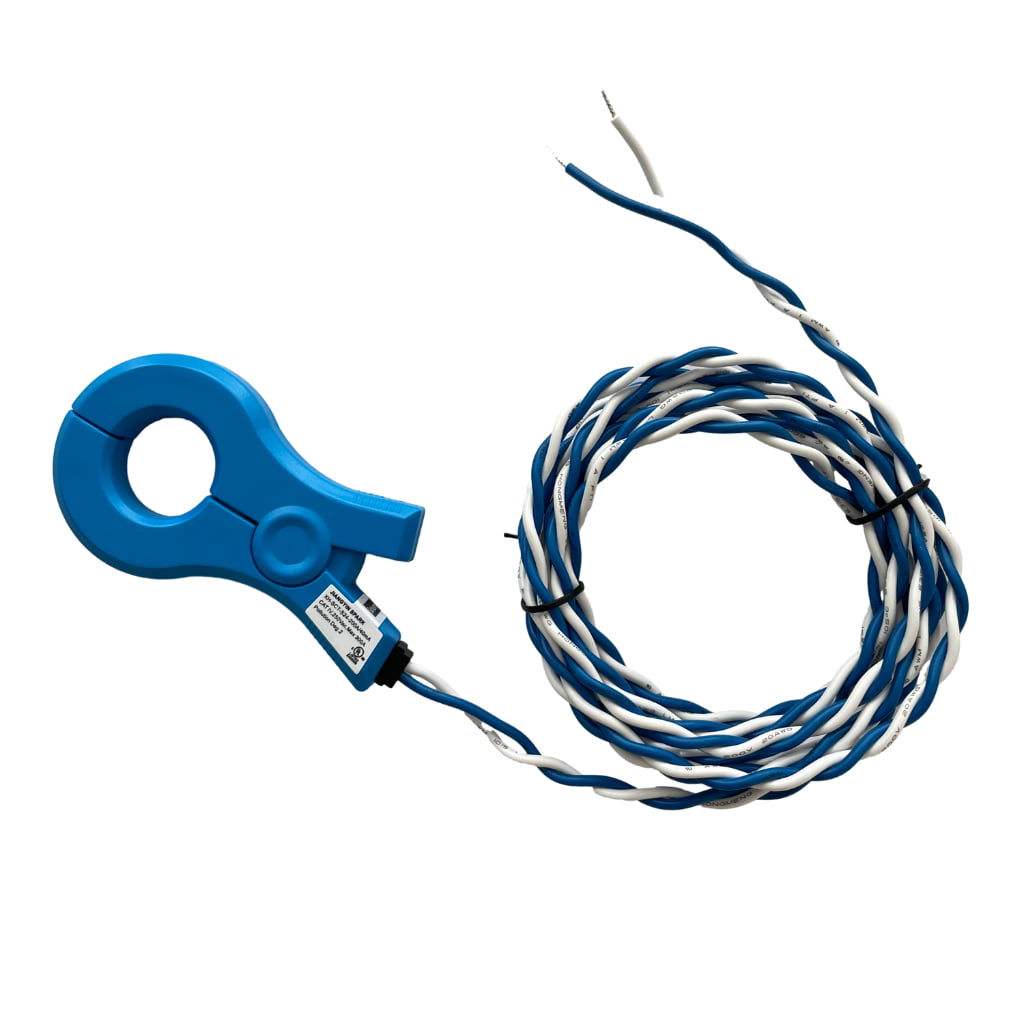

XH-SCT-S24 is a compact UL 2808 Listed split core current transformer for 1–300A AC measurement. Its slim profile, quick-open clamp, and one-handed operation enable fast installation without disconnecting wires. Designed for tight electrical panels, it is a space-saving alternative to the XH-SCT-T24 for energy submetering, PV monitoring, and electrical retrofits.

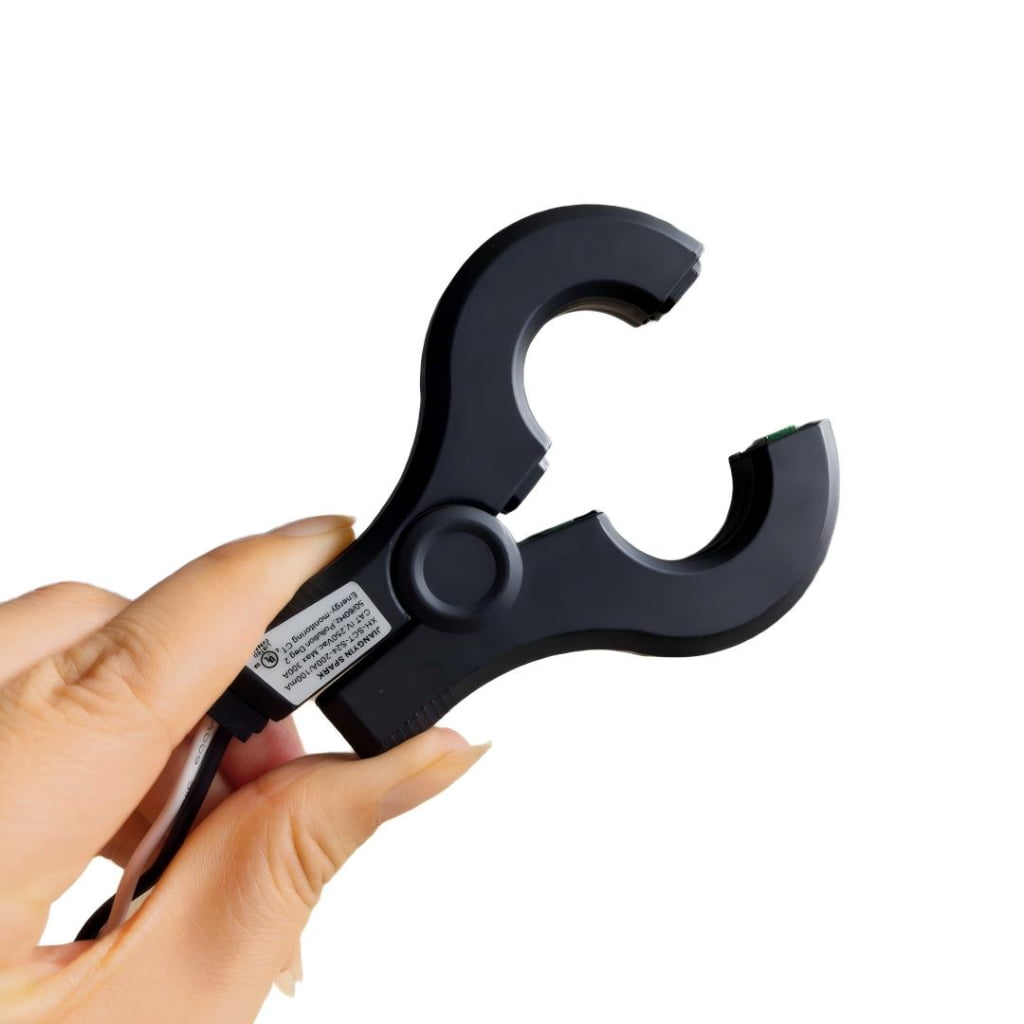

The XH-SCT-S24 Slim Split Core Current Transformer is designed for fast and easy current monitoring in residential and commercial electrical panels. Its compact, slim profile and split-core clamp design allow one-handed installation around existing conductors without disconnecting wires or interrupting power.
The space-saving design fits easily into main service panels and confined electrical enclosures where standard split-core current transformers cannot fit, helping installers save installation time and labor costs. The XH-SCT-S24 is compatible with energy meters, consumption meters, home energy management systems, and solar monitoring applications.
By providing accurate real-time current measurement, the XH-SCT-S24 helps monitor household energy consumption and supports applications such as solar energy systems, battery storage, EV charging, and smart energy devices.
Available with 0.333V (333mV) and Low-current mA output variants (40mA / 50mA / 80mA), the XH-SCT-S24 can be customized with different current ratios, cable lengths, and connectors for OEM and ODM applications.
Every unit passes routine testing under our ISO 9001 quality system prior to shipment. The XH-SCT-S24 holds UL 2808, CE and RoHS certifications. The UL 2808 listed is fully compliant for North American submetering and energy monitoring projects.
| Parameter | Value |
|---|---|
| Rated Primary current | 1A to 300Aac |
| Current Range | 10% - 120% of Rated Current |
| Rated Output | 0.333V ,mA ,or customized |
| Accuracy | ±0.5% |
| CT Phase Angle | Rated input <1.5 degree |
| Withstand Voltage | 5.4KV / 1mA / 1min |
| Certifications | CE, RoHS, UL2808(E498920) |
| Weight | 190g for 5m twist cable |
Yes. As the manufacturer we offer OEM/ODM customization including custom current ratios, output signals, cable lengths, connector types, and private labeling with your logo and packaging.
Yes. up to 3 pcs free samples can be provided for testing with freight collected. Samples can be ready within 7 days
10–15 days for 100-1000 pcs ,25 days for 2k-20k pcs . Customized connectors typically require 20–25 days
