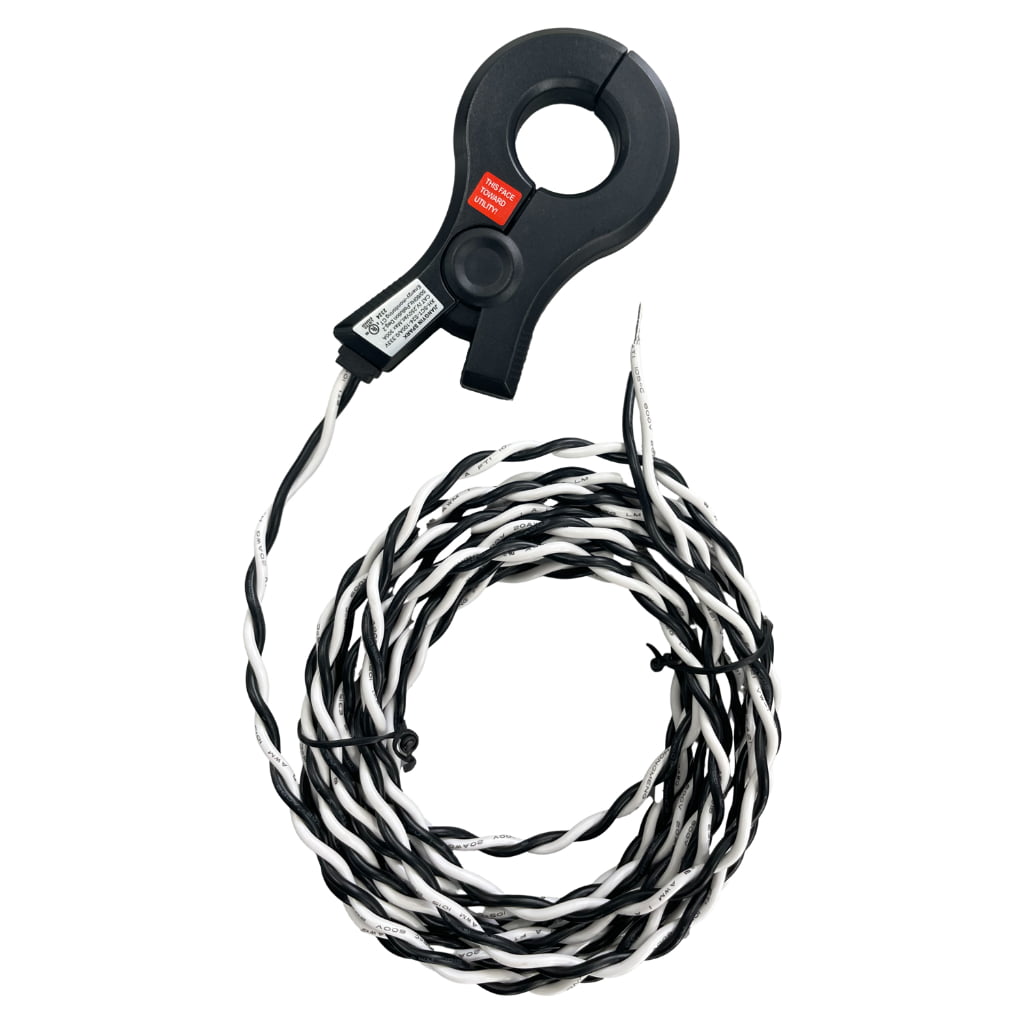

Slim clamp on current Transformer XH-SCT-S24
Model No: XH-SCT-S24
UL2808
CE
UKCA
RoHS
ISO 9001
Input
1-300A
Output
50A/0.333V ,100A/mA ,200A/40mA ,200A/80mA ,300A/100mA
Inner Diameter
24mm
Dimensions
96 x 53.5 x 13.5mm
Weight
150g for 2m wire
Key Features
- Hinged split-core design -- easy, tool-free installation
- Popular ratings: 50A/333mV, 100A/50mA, 100A/1V
- Built-in burden resistor or protection diode
- Compact form factor, ideal for narrow spaces
- UL2808 listed (E498920) · CE · UKCA · RoHS
- Rated voltage 600 VAC CAT III, withstand 3.0 kV
- Operating temp −20 °C to 55 °C
- Lead wire 2.4 m twisted pair (Molex/Amphenol connectors available)
Downloads
Fast Delivery: 7-10 days / 10K pcs
OEM / ODM Friendly
Free Samples Available
Technical Specifications
Electrical
| Rated Primary Current | 1-300A |
| Output | 50A/0.333V ,100A/mA ,200A/40mA ,200A/80mA ,300A/100mA |
| Accuracy Class | 0.5% / 1.0% |
| Current Range | 10% - 120% of Rated |
| Frequency | 50 / 60 Hz |
| Wire Polarity | White = + Black = − |
Mechanical / Environmental
| Form Factor | Split-Core CT (Hinged) |
| Exterior Dims | 96 x 53.5 x 13.5mm |
| Inner Diameter | 24mm |
| Weight | 150g for 2m wire |
| Case Material | Epoxy, UL 94V-0 |
| Lead Wire | 2.4 m twisted pair (customizable) |
| Operating Temp | −20 °C to 55 °C |
| Humidity | 0 - 95% RH, non-condensing |
| Installation | Indoor use |
Safety / Compliance
| Rated Voltage | 600 VAC CAT III |
| Insulation | 600 VAC |
| Withstand Voltage | 3.0 kV / 1 mA / 1 min |
| Certifications | UL2808 (E498920), CE, UKCA, RoHS |
| Quality Mgmt | ISO 9001 · ISO 14001 · ISO 45001 |
| Phase Orientation | Arrow → Load |

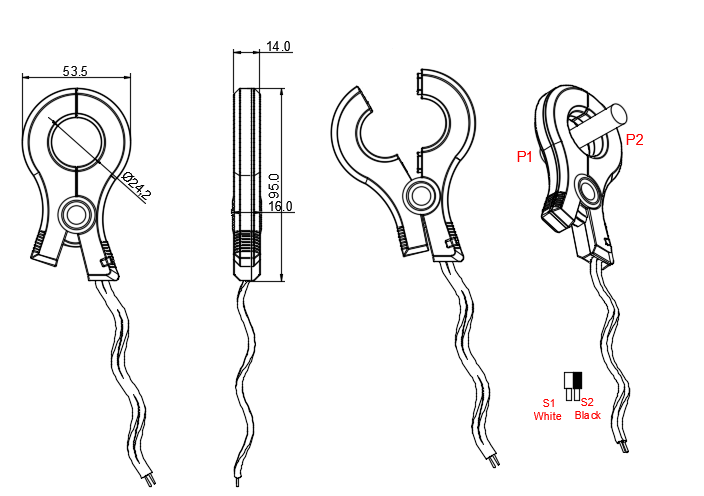

Dimensional Drawing
| Parameter | Value |
|---|---|
| Exterior Width | 96 x 53.5 x 13.5mm |
| Exterior Height | 53.3 mm (2.10") |
| Exterior Depth | 17.0 mm (0.67") |
| Inner Diameter | 24mm |
| Form Factor | Split-Core CT (Hinged) |
| Lead Wire Length | 2.4 m twisted pair (customizable) |
| Case Material | Epoxy Encapsulated, UL 94V-0 |
| Wire Polarity | White = Positive Black = Negative |
Installation Note
Arrow on housing must point towards load. Designed for indoor use only.
Operating temperature −20 °C to 55 °C, humidity up to 95% RH non-condensing.
Weight: 150g for 2m wire
Typical Applications
Energy Monitoring
Solar Energy System
PV Inverter
Energy Storage System (ESS)
Smart Meter
Power Quality Monitoring
Smart Grid Solution
Data Center Power Infrastructure
EV Charging Solution
IoT Energy Management
How to Order
01
Submit Specs
Provide input current, output, wire length & window size
02
Get Quote
We recommend a model and send a quotation by quantity
03
Free Sample
Standard samples ship within 3 days via your DHL/UPS account
04
Test & Approve
Evaluate the sample against your application requirements
05
Place Order
Confirm order; standard lead time 10-15 days from receipt
06
Ship & Deliver
7-10 days production for 10K pcs, near Shanghai port
