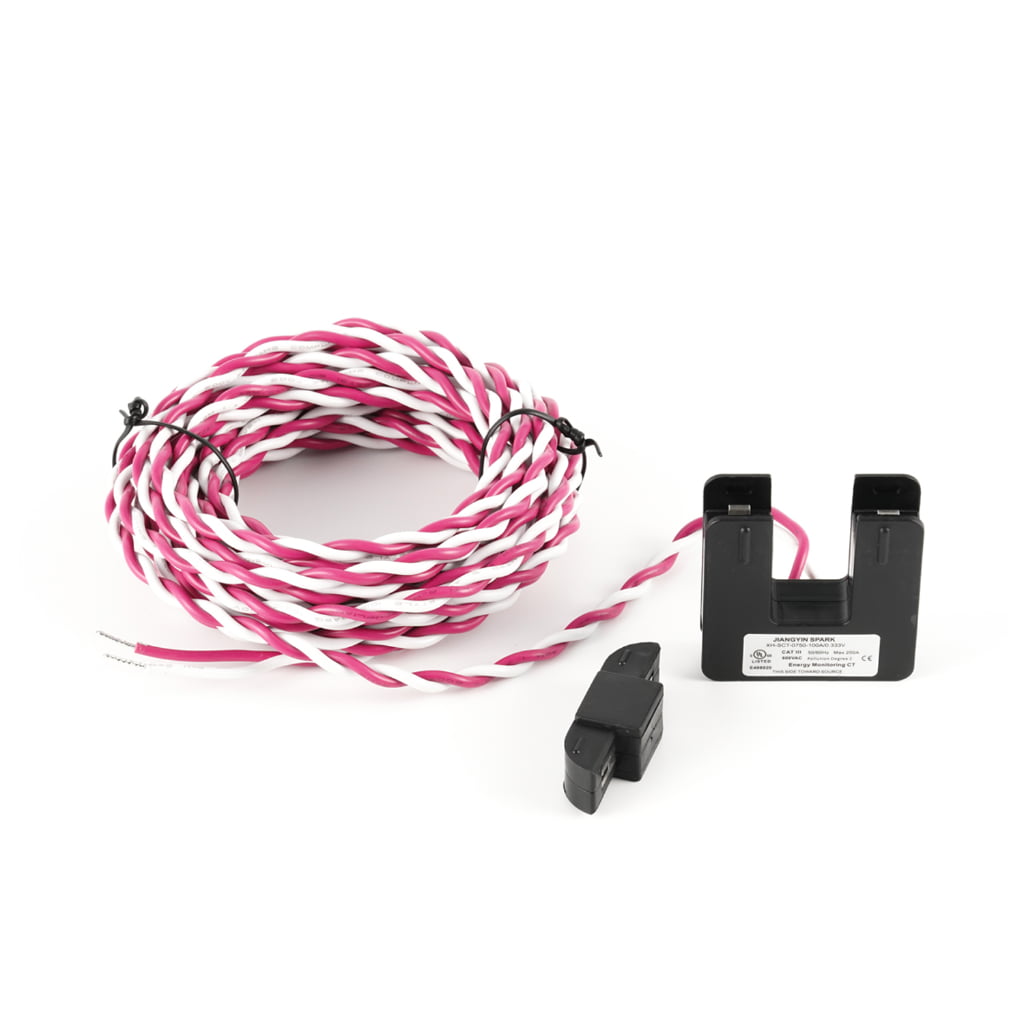

Split core CT XH-SCT-0750
Model No: XH-SCT-0750
UL2808
CE
UKCA
RoHS
ISO 9001
Input
2-200A
Output
50A/0.333V ,100A/0.333V ,150A/0.333V ,200A/0.333V
Inner Diameter
0.75 inch x 0.75 inch/19mm x 19mm
Key Features
- Hinged split-core design -- easy, tool-free installation
- Popular ratings: 50A/333mV, 100A/50mA, 100A/1V
- Built-in burden resistor or protection diode
- Compact form factor, ideal for narrow spaces
- UL2808 listed (E498920) · CE · UKCA · RoHS
- Rated voltage 600 VAC CAT III, withstand 3.0 kV
- Operating temp −20 °C to 55 °C
- Lead wire 2.4 m twisted pair (Molex/Amphenol connectors available)
Downloads
Fast Delivery: 7-10 days / 10K pcs
OEM / ODM Friendly
Free Samples Available
Technical Specifications
Electrical
| Rated Primary Current | 2-200A |
| Output | 50A/0.333V ,100A/0.333V ,150A/0.333V ,200A/0.333V |
| Accuracy Class | 0.5% / 1.0% |
| Current Range | 10% - 120% of Rated |
| Frequency | 50 / 60 Hz |
| Wire Polarity | White = + Black = − |
Mechanical / Environmental
| Form Factor | Split-Core CT (Hinged) |
| Exterior Dims | 50.8 × 53.3 × 17.0 mm |
| Inner Diameter | 0.75 inch x 0.75 inch/19mm x 19mm |
| Weight | -- |
| Case Material | Epoxy, UL 94V-0 |
| Lead Wire | 2.4 m twisted pair (customizable) |
| Operating Temp | −20 °C to 55 °C |
| Humidity | 0 - 95% RH, non-condensing |
| Installation | Indoor use |
Safety / Compliance
| Rated Voltage | 600 VAC CAT III |
| Insulation | 600 VAC |
| Withstand Voltage | 3.0 kV / 1 mA / 1 min |
| Certifications | UL2808 (E498920), CE, UKCA, RoHS |
| Quality Mgmt | ISO 9001 · ISO 14001 · ISO 45001 |
| Phase Orientation | Arrow → Load |

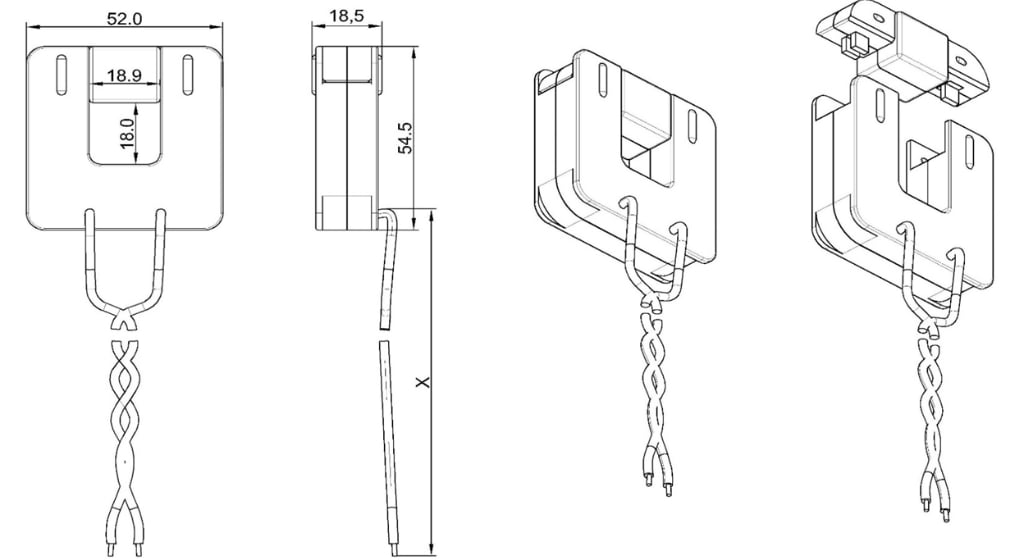

Dimensional Drawing
| Parameter | Value |
|---|---|
| Exterior Width | 50.8 mm (2.00") |
| Exterior Height | 53.3 mm (2.10") |
| Exterior Depth | 17.0 mm (0.67") |
| Inner Diameter | 0.75 inch x 0.75 inch/19mm x 19mm |
| Form Factor | Split-Core CT (Hinged) |
| Lead Wire Length | 2.4 m twisted pair (customizable) |
| Case Material | Epoxy Encapsulated, UL 94V-0 |
| Wire Polarity | White = Positive Black = Negative |
Installation Note
Arrow on housing must point towards load. Designed for indoor use only.
Operating temperature −20 °C to 55 °C, humidity up to 95% RH non-condensing.
